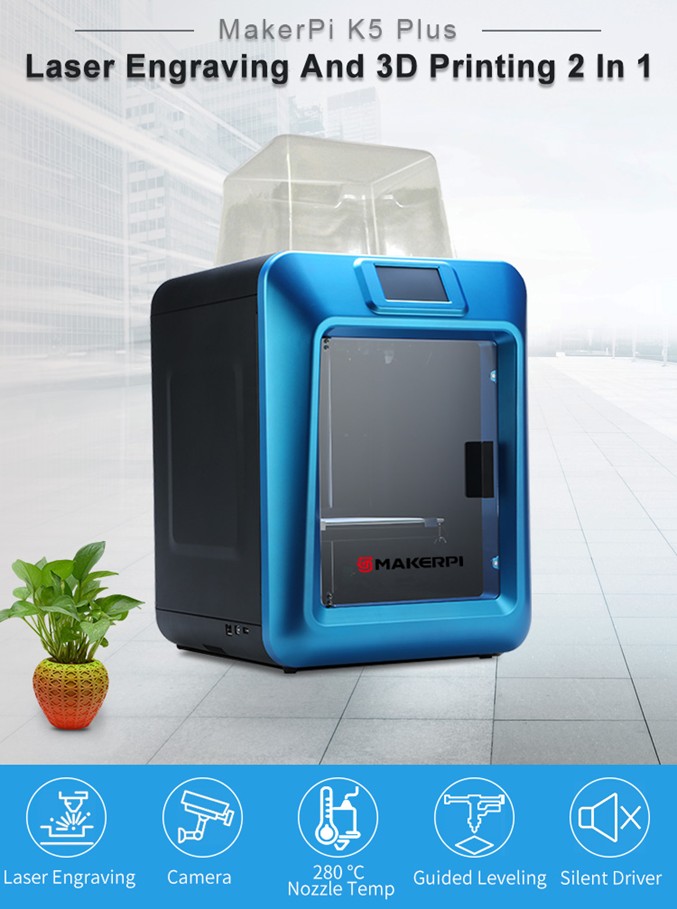

MakerPi K5 Plus – Professional 3D Printer for Education & Enterprise
Overview
The MakerPi K5 Plus is engineered for classrooms, labs, and professional environments that demand reliability, safety, and precision. With advanced features like guided leveling, modular print heads, built‑in camera monitoring, and long‑duration stability, it’s an ideal choice for educators and institutions looking to integrate 3D printing into their curriculum.
Key Features
🔥 High‑Temperature All‑Metal Hotend
Supports printing up to 280°C
Compatible with high‑melting‑point filaments
Longer service life and improved durability
🔧 Modular Quick‑Release Print Head
Snap‑type quick‑release system for fast nozzle changes
Efficient cooling channel design prevents clogging
Separate print heads for PLA and ABS to extend lifespan
📹 Built‑In HD Camera + Wi‑Fi Monitoring
Monitor prints from Android, Windows, macOS, Linux
Supports simultaneous viewing on multiple devices
Teachers can control multiple printers over LAN
Pause/stop printing remotely in case of issues(LAN only; no remote internet control)
🤫 Ultra‑Quiet Operation
Powered by TMC2208 motor drivers
Smooth, silent printing ideal for classrooms
🎯 Guided Leveling System
Beginner‑friendly leveling with on‑screen instructions
Reduces print failures and prevents nozzle scratches
🕒 Long‑Duration Stability
Capable of printing 200+ hours continuously
Designed for long‑term, reliable performance
🔄 Multiple Nozzle Options
Supports 0.2 / 0.4 / 0.6 / 0.8 / 1.0 mm nozzles
Adaptable for fine detail or fast, large‑scale prints
💡 Built‑In LED Lighting
Clear visibility of the print area
Ideal for classroom demonstrations
🔌 Secure USB‑to‑Printer Workflow
Direct G‑code transfer via USB cable
Continues printing even if the computer disconnects
No need for USB flash drives—ideal for secure environments
🛡️ Premium Components
Kelimotor motors
STM microelectronics chips
SanDisk internal storage
Ensures durability and long service life
📡 Anti‑Interference Technology
Cura check‑code system corrects path errors
Improves print success rate in noisy environments
🌡️ Safety Alarms
Abnormal heating detection
Auto‑stop + alarm for sudden temperature changes
⚡ Power‑Loss Recovery
Automatically resumes printing after power restoration
🧵 Filament Run‑Out Sensor
Alerts when filament breaks or runs out
Continues printing after reloading
Technical Specifications
Printing
Specification Details Print Technology FFF / FDM Build Volume 30 × 20 × 20 cm Nozzle Single Layer Resolution 0.05–0.30 mm Precision ±0.1–0.3 mm Supported Nozzle Diameter 0.4 mm (others optional) Materials PLA, ABS, Nylon Filament Diameter 1.75 mm Nozzle Temp Up to 280°C Bed Temp Up to 100°C Build Plate PEI / Flex Board Build Area Type Enclosed Leveling Auto / Guided
Hardware

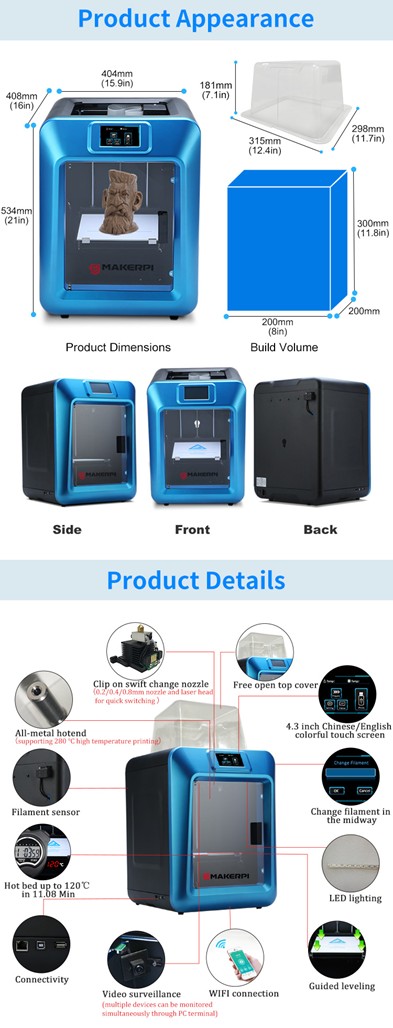

Specification Details XY Precision 12.8 microns Z Precision 2.5 microns Internal Memory 8 GB Display Color Touch Screen Filament Storage Internal Product Size 408 × 404 × 535 mm Weight 22 kg
Connectivity
USB‑A 2.0
RJ45 LAN
USB Flash Disk (offline printing)
Software
Slicing: Cura
File Types: STL, GCODE, OBJ, DAE, AMF, BMP, JPG
OS Support: Windows 11+, macOS 10.9+
Environment
Operating Temp: 16–32°C
Recommended: 15–35°C, Humidity 20–50%
Certifications: CE, FCC, ROHS
Warranty
PLA+ Filament Specifications
Material: PLA+
Diameter: 1.75 mm
Weight: 1 kg spool
Compatible with printer’s temperature range
